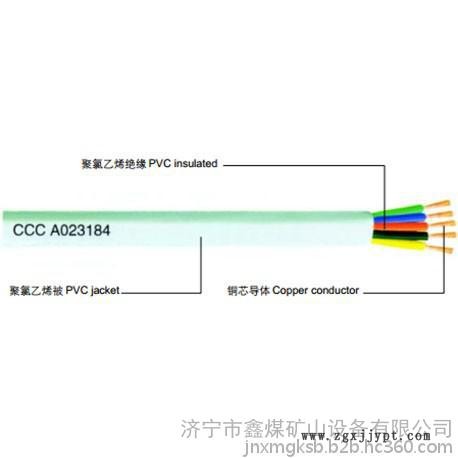

AVVR型系列300/300V銅芯聚氯乙烯絕緣聚氯乙烯護套安裝用軟電纜
| 產地 | 濟寧 |
| 電流 | 200（A） |
| 工作電壓 | 200V |
| 工作溫度 | 20-70 |
| 認證 | IOS9001 |
| 衰減 | 24 |
| 特性阻抗 | 14 |
| 彎曲半徑 | 36 |
| 芯數 | 2 |
| 品牌 | 鑫煤 |
| 型號 | xm |
| 外殼顏色 | 全 |
| 傳播速度 | 35 |
| 直流回路電阻 | 24 |
| 芯線材質 | 鋁合金線 |
AVVR型系列300/300V銅芯聚氯乙烯絕緣聚氯乙烯護套安裝用軟電纜
適用范圍 | 安防監控報警系統、樓宇對講系統、電器內部裝線控制用線、電腦、儀表和電子設備及自動化裝置等信號控制用線。 | 產品標準化 | 國家標準JB/T 8734.5-2008 | 技術參數 | 型號/規格 | 芯數×標稱
截面(mm2) | 絕緣厚度
規定
值 | 護套厚度
規定
值 | 平均外徑
(mm) | 20℃時
導體最大電阻
Ω/km | 70℃時
絕緣電阻
最小值
MΩ/km | 下限 | 上限 | AVVR2×7/0.12 | 2×0.08 | 0.4 | 0.6 | 3.1 | 4.1 | 247 | 254 | 0.018 | AVVR2×7/0.12 | 2×0.08 | 0.4 | 0.6 | 2×3.4 | 2.7×4.1 | 247 | 254 | 0.018 | AVVR2×7/0.15 | 2×0.12 | 0.4 | 0.6 | 3.3 | 4.3 | 158 | 163 | 0.016 | AVVR2×7/0.15 | 2×0.12 | 0.4 | 0.6 | 2.4×3.6 | 2.8×4.3 | 158 | 163 | 0.016 | AVVR2×12/0.15 | 2×0.2 | 0.4 | 0.6 | 3.6 | 4.7 | 92.3 | 95.0 | 0.014 | AVVR2×12/0.15 | 2×0.2 | 0.4 | 0.6 | 2.5×3.9 | 3.0×4.7 | 92.3 | 95.0 | 0.014 | AVVR2×16/0.15 | 2×0.3 | 0.5 | 0.6 | 4.1 | 5.3 | 69.2 | 71.2 | 0.014 | AVVR2×16/0.15 | 2×0.3 | 0.5 | 0.6 | 2.8×4.4 | 3.4×5.3 | 69.2 | 71.2 | 0.014 | AVVR2×23/0.15 | 2×0.4 | 0.5 | 0.6 | 4.4 | 5.7 | 48.2 | 49.6 | 0.013 | AVVR2×23/0.15 | 2×0.4 | 0.5 | 0.6 | 2.9×4.7 | 3.5×5.7 | 48.2 | 49.6 | 0.013 | AVVR3×7/0.15 | 3×0.12 | 0.4 | 0.6 | 3.4 | 4.5 | 158 | 163 | 0.016 | AVVR3×12/0.15 | 3×0.2 | 0.4 | 0.6 | 3.8 | 4.9 | 92.3 | 95.0 | 0.014 | AVVR3×16/0.15 | 3×0.3 | 0.5 | 0.6 | 4.4 | 5.7 | 69.2 | 71.2 | 0.014 | AVVR3×23/0.15 | 3×0.4 | 0.5 | 0.6 | 4.7 | 6.0 | 48.2 | 49.6 | 0.013 | AVVR4×7/0.15 | 4×0.12 | 0.4 | 0.6 | 3.8 | 4.9 | 158 | 163 | 0.016 | AVVR4×12/0.15 | 4×0.2 | 0.4 | 0.6 | 4.2 | 5.4 | 92.3 | 95.0 | 0.014 | AVVR4×16/0.15 | 4×0.3 | 0.5 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 0.014 | AVVR4×23/0.15 | 4×0.4 | 0.5 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 0.013 | AVVR5×7/0.15 | 5×0.12 | 0.4 | 0.6 | 4.1 | 5.3 | 158 | 163 | 0.016 | AVVR5×12/0.15 | 5×0.2 | 0.4 | 0.6 | 4.5 | 5.8 | 92.3 | 95.0 | 0.014 | AVVR5×16/0.15 | 5×0.3 | 0.5 | 0.6 | 5.3 | 6.7 | 69.2 | 71.2 | 0.014 | AVVR5×23/0.15 | 5×0.4 | 0.5 | 0.6 | 5.6 | 7.2 | 48.2 | 49.6 | 0.013 | AVVR6×7/0.15 | 6×0.12 | 0.4 | 0.6 | 4.4 | 5.7 | 158 | 163 | 0.016 | AVVR6×12/0.15 | 6×0.2 | 0.4 | 0.6 | 4.9 | 6.3 | 92.3 | 95.0 | 0.014 | AVVR6×16/0.15 | 6×0.3 | 0.5 | 0.6 | 5.7 | 7.3 | 69.2 | 71.2 | 0.014 | AVVR6×23/0.15 | 6×0.4 | 0.5 | 0.6 | 6.2 | 7.8 | 48.2 | 49.6 | 0.013 |
|
|
| |
|
|
