商品規格特性
法蘭墊片:
JIS 10K : 15A ~ 150A
ANSI 150 : 1/2'' ~ 6''
材質表
JIS 10K
材質: PTFE/TFM1600
ANSI 150
材質: PTFE/TFM1600
尺寸表
| Nominal | Size | OD | ID | t |
| JIS | mm | |||
| 10K | 15 | 57.3 | 8.8 | 3~30 |
| 10K | 20 | 62.3 | 13.93 | 3~30 |
| 10K | 25 | 74.1 | 19.64 | 3~30 |
| 10K | 40 | 89.1 | 33.9 | 3~30 |
| 10K | 50 | 104.1 | 44.51 | 3~30 |
| 10K | 65 | 124.1 | 54.71 | 3~30 |
| 10K | 80 | 134.1 | 69.92 | 3~30 |
| 10K | 100 | 159.1 | 93.25 | 3~30 |
| 10K | 150 | 224 | 145 | 3~30 |
| Nominal | Size | OD | ID | t |
| INCH | mm | |||
| 1/2" | 15 | 46.5 | 15 | 3~30 |
| 3/4" | 20 | 57.2 | 13.93 | 3~30 |
| 1" | 25 | 66.3 | 19.64 | 3~30 |
| 1-1/2" | 40 | 85.3 | 33.9 | 3~30 |
| 2" | 50 | 105.1 | 44.51 | 3~30 |
| 3" | 80 | 136.1 | 69.92 | 3~30 |
| 4" | 100 | 175.1 | 93.25 | 3~30 |
| 6" | 150 | 224.4 | 145 | 3~30 |
單位：公厘

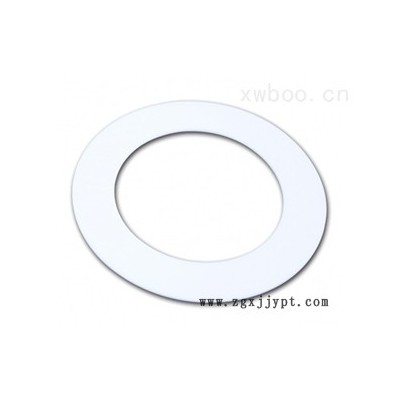

結構圖
