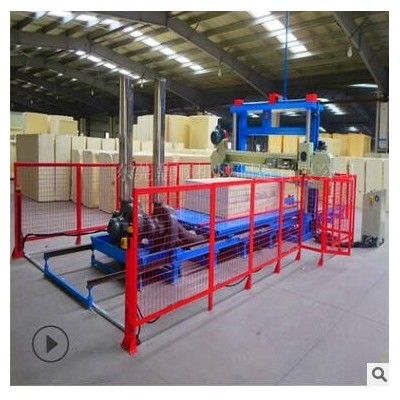

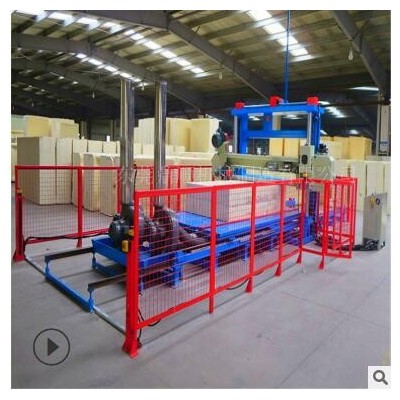

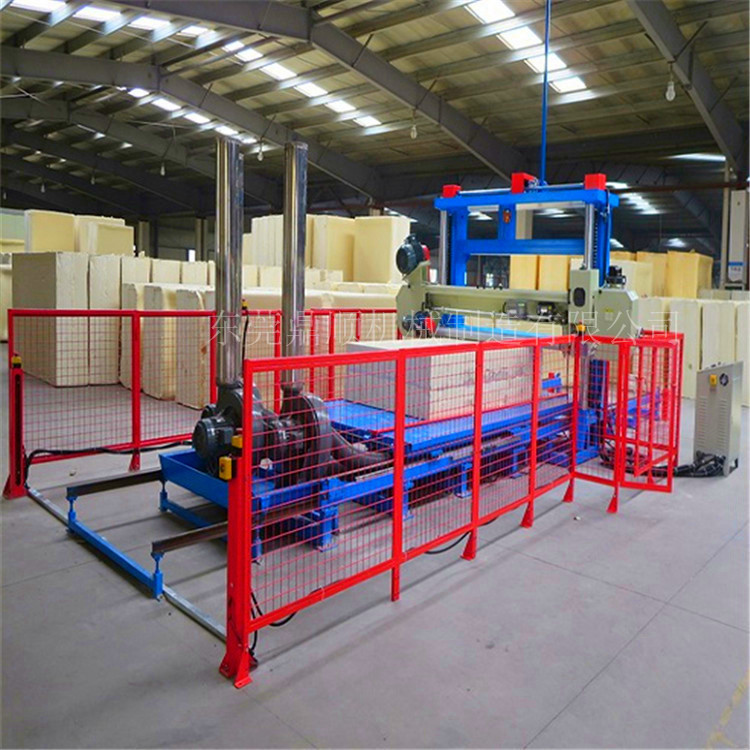

DSJX-1650/2150海綿平切機
Horizontal Foam CuttingMachine(WithVacuum)
海綿平切機主要用于塊狀海綿的水平往返切片工作。采用自動化數(shù)字控制，通過控制箱設定數(shù)值，工作臺采用滾筒式網帶吸風裝置，上料簡單，為了防止切割的泡綿滑動，可加壓輥。操作簡單，切割方便。
Sponge net with suction leveling machine is mainly used for the horizontal slicing of block sponge. Adopt automatic digital control, set the value through the control box, the working table adopts the drum type net with air suction device, the feeding is simple, in order to prevent the foam slip of cutting, the pressure roller can be used. Simple operation and accurate cutting.
主要技術參數(shù)SPECIFICATION:
2150型 | 2200型 | ||
Cutting Foam Size: 有效切割泡綿尺寸: | W2000mm*L3000mm | Cutting Foam Size: 有效切割泡綿尺寸: | W2200mm*L3000mm |
Cutting Foam Height: 有效切割泡綿高度: | H1200mm | Cutting Foam Height: 有效切割泡綿高度: | H1200mm |
Cutting Thickness: 切割厚度: | 2mm Up 2mm以上 | Cutting Thickness: 切割厚度: | 2mm Up 2mm以上 |
Cutting Speed: 切割速度: | 0～30m/min(Adjustable) 0～30m/分鐘(速度可調) | Cutting Speed: 切割速度: | 0～30m/min(Adjustable) 0～30m/分鐘(速度可調) |
Blade Length: 刀帶尺寸: | L10160*W30*T0.45mm | Blade Length: 刀帶尺寸: | L10360*W30*T0.45mm |
Cutting Type: 切割方式: | Automatic+Press Roller 全自動控制+壓輥 | Cutting Type: 切割方式: | Automatic+Press Roller 全自動控制+壓輥 |
Vacuum System: 強力吸風裝置: | Available 已加裝 | Vacuum System: 強力吸風裝置: | Available 已加裝 |
Machine N.W: 機器凈重: | 2500kg | Machine N.W: 機器凈重: | 2800kg |
Total Motor Power: 總功率: | 13kw | Total Motor Power: 總功率: | 13kw |
Floor Space: 占地尺寸: | L7000*W4500*H2400mm | Floor Space: 占地尺寸: | L7000*W4700*H2400mm
|
