全系列尺寸 A full spectrum of sizes
| 顏色/color | 黃色/yellow | 白色/white | 紫色/purple | 藍色/blue | 綠色/green | 橙色/orange | 紅色/red |
節距/pitch | 8mm | 8mm | 8mm | 14mm | 14mm | 14mm | 14mm |
| 寬度/width | 16mm | 32mm | 64mm | 35mm | 52.5mm | 70mm | 105mm |
SILENTSYNC在套筒中制造。
例如，在兩個箭頭方向之間偏移為64mm（紫色）的套筒上，可生產64mm寬的皮帶，
或在兩個分段各生產三條32mm寬的皮帶。也可以生產一條48mm寬的皮帶和兩條16mm
寬的皮帶。

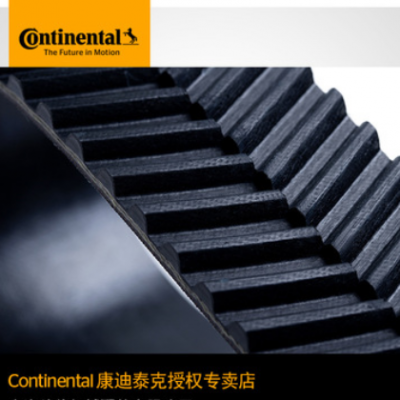

The SILENTSYNC is manufactured in sleeves.
On a sleeve with an offset of,for example,64mm (purple)between the arrow directions,
either belt widths of 64mm can be produced or three 32mm widths each from two sections.
One 48mm wide belt and two of 16mm in width are also possible.
可提供以下長度：The following lengths are available
| 齒形/profile | 寬度/width（mm） | 長度范圍/length range lw(mm) |
| Y=yellow黃色 | 16 | 640-2400 |
W=white白色 | 32 | 640-2400 |
| P=purple紫色 | 64 | 720-1600 |
| B=blue藍色 | 35 | 994-3920 |
| G=green綠色 | 52.5 | 994-3920 |
| O=orange橙色 | 70 | 1120-3920 |
| R=red紅色 | 105 | 1260-3920 |
可根據要求提供相應的帶輪。
Sprockets for this profile are available on request.
組成部分
經過特殊處理的織物/Specially treated fabric
合成橡膠同步帶齒/Synthetic rubber teeth
芳綸張力線繩/Aramide tension member
含織物的合成橡膠背帶/Synthetic rubber backing with fabric
特性Properties：
》根據應用的不同，溫度范圍從-40℃到+95℃
Temperature range,depending on application,from -40℃ to +95℃
》噪聲極低
Very low-noise
》抗靜電性符合ISO9563的要求
Electrically conductive to ISO 9563
》有條件耐油
Conditionally resistant to oil
》耐臭氧
Ozone-resistant
》抗老化
Aging-resistant
》無需維護
Maintenance free
SILENTSYNC的優勢/The SILENTSYNC adcantages
相較于三角帶的優勢 Over V-belt
停機時間更少，維護成本更低 Reduced downtime and maintenance cost
無需再次張緊 Eliminates retensioning
皮帶張力更低，軸承載荷更小 Lower belt tension,reduced bearing loads
機械效率高 High mechanical efficiency
無滑動 No slippage
相較于標準HTD皮帶的優勢/Over standard HTD belts
噪聲更低 Reduced noise
振動更小 Reduced vibration
定位準確性更高 Higher positioning accuracy
速度范圍廣 Wide speed range
自對中，無需法蘭 Self-tracking,no flanges required
動力輸出更高 Higher power rating
應用：老鷹帶和帶輪適用各個行業的廣泛應用。
?農業設備 ?壓紙機 ?拔豬毛機 ?顆粒粉碎機 ?鏈?zhǔn)絺鲃?dòng) ?肉類粉碎機
?烘烤混合機 ?木材的剝皮機及鋸床 ?紡織機 ?采礦設備 ?臥式傳動
?鋼/鋁的流水線
